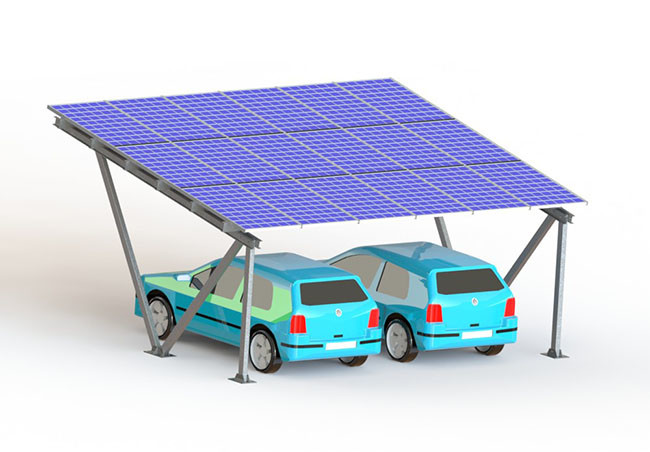

TX0009 High Strength Aluminum Solar Mounting System For Solar
Carport
Product Details
The Tunxin TX0009 is one of the most innovative, pre-assembled
support and durable carport mount system.This system is in commonly
use for residential through to utility scale worldwide. By using
high quality engineered components, TX0009 saves developers,
operators and installers time and money when delivering large scale
projects.
Specifications
| Installation Site | Open field |
| Foundation | Concrete base |
| Tilt Angle | 0-45 degree |
| Wind Load | Up to 60 m/s |
| Snow Load | 1.4 KN/㎡ |
| Applicable Module | Framed or frameless |
| Module Orientation | Landscape or portrait |
| Standard | AS/NZS 1170, JIS C8955:2011 ,Euro Code 8,DIN 1055 |
| Material | Anodized aluminum |
| Color | Natural or Customized |
| Warranty | Ten years warranty and twenty five years service life |
Key Benefits
1. Easy to install:
The tilt-in module can be put into the extruded rail from the any
location and can be high pre-assembly with the clamp and we use
standard T bolts being attached to roof hook to minimize the time
and cost of installation.
2. Offer unmatched durability:
With all structural components comprised of high class stainless
steel and anodized aluminum alloy, it is designed for twenty years
service life and backed by ten years warranty.
3. Stand up to extreme weather:
Tunxin pitched roof racking system is designed to stand up to the
extreme weather complied with the AS/NZ 1170 and other
international structure load standard by the skilled engineer. The
main support components also have been test to guaranty its
structure and load-carrying capacity.
4. Provide broad installation flexibility:
These systems accommodate most commercially available framed solar
panels and diverse roof types, and they can scale easily from small
to large, multi-megawatt installations.
Packaging
Why Choose Tunxin
1.Easy installation : By innovative Tunxin rail and G module , the
installation process of photovoltaic modules is simple and fast
with only a few components and minimal tools required.
2.Great flexibility : With the Tunxin Solar Mounting Systems ,
framed and frameless photovoltaic modules can be easily mounted on
roofs and ground.
3.Excellent compatibility :Designed as versatile racking
systems,Factory Flat Roof Solar Mounting Structure China Supplier
Design can be widely applied on any module type.
4.Installation direction:0~60
5.Installation place:Ground,Flat roof
6.With our professional R&D team,efficient management team and
high quality of the workforce,solar first staffs commit to provide
customers with the most stable & reliable,economical & efficient
solar PV system solutions.
Advantages of Aluminum mounting structure
A.Affordable price :with reasonable design,price of aluminum
mounting system will not be very higher than C-steel mounting
system (only about 25% price difference).
B.Save installation time and labor cost:Aluminum mounting structure
has higher machining accuracy,much lighter weight,and part
pre-assembly in factory,(save 30% installation time)
C.Save maintenance cost:with better anti-corrosion,aluminum
mounting structure will have about 25 years duration
lifetime,almost no need maintenance cost.But C-steel mounting will
have to be repainted and re-welded to keep its service life.
D.High priced recycling:scrap aluminum can be sold in high price
after using (about 40% purchase price of aluminum mounting),while
C-steel will be valueless for years severe corroded.
