Adjustable Clamp Solar Mounting System For Tin Roof / Sheet Roof
Solution
Product Details
The Tunxin Tin (Metal) Roof Mounting Solution is suitable for
almost any flat roof. It provides a simple and cost-effective
solution for mounting all framed and unframed solar panels
currently on the market. The Mount Makers wide range of mounting
brackets provide for fast and secure fixing to sheet metal, purlins
or rafters and for different roofing types at angles from 10 to 60°
. To simplify connection of support rails to tin brackets, The
Tunxin rails are designed to allow standard T bolts to be simply
swiveled into the rails.
Technical Features
| Installation Site | Tin Roof |
| Building Height | 20 m |
| Wind Load | Up to 34 m/s |
| Snow Load | 20 cm |
| Applicable Module | Framed or frameless |
| Standard | AS/NZS 1170,GB50009-2012,DIN1055 |
| Material | High Class Aluminum alloy Al6005-T5& Stainless steel 304 |
| Color | Natural or Customized |
| Warranty | Ten years warranty and twenty five years service life |
Key Benefits
1.Easy to install:
The tilt-in module can be put into the extruded rail from the any
location and can be high pre-assembly with the clamp and we use
standard T bolts being attached to roof hook to minimize the time
and cost of installation.
2.Offer unmatched durability:
With all structural components comprised of high class stainless
steel and anodized aluminum alloy, it is designed for twenty years
service life and backed by ten years warranty.
3.Stand up to extreme weather:
Tunxin pitched roof racking system is designed to stand up to the
extreme weather complied with the AS/NZ 1170 and other
international structure load standard by the skilled engineer. The
main support components also have been test to guaranty its
structure and load-carrying capacity.
4.Provide broad installation flexibility:
These systems accommodate most commercially available framed solar
panels and diverse roof types, and they can scale easily from small
to large, multi-megawatt installations.
Installation

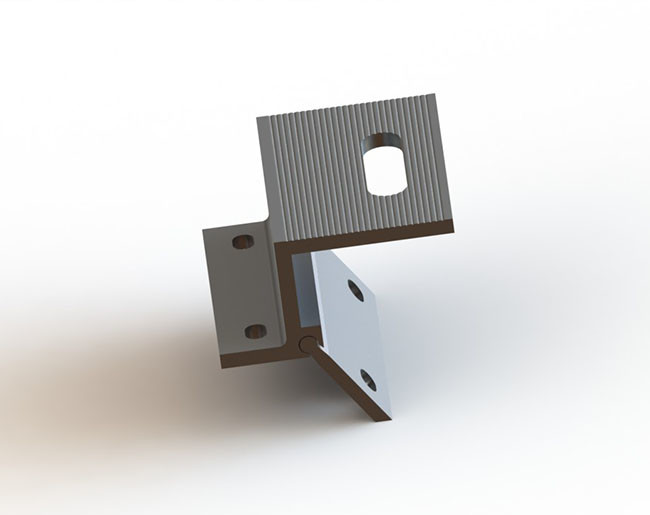

1.Fix the clamp using the screw.
2.Use the M8*25 Hexagon screw, M8 spring washer, M8 antiskid washer
and fixing nut to connect the rail to the clamp.
3.Repeat the clamp installation in accordance with the planned
layout.
4.Place solar panels on the rails.
5.Using end clamps with M8*25 Hexagon screw and fixing nuts to
attach solar panels to the rails. Adjacent solar panels are
attached by using mid clamps with M8 hexagon screws.(The hexagon
screw length is determined by the solar panel’s thickness)
6.Repeat steps until installation is completed.
More Clamps For Choose
Packaging
Advantages Of Aluminum Mounting Structure
A.Affordable price :with reasonable design,price of aluminum
mounting system will not be very higher than C-steel mounting
system (only about 25% price difference).
B.Save installation time and labor cost:Aluminum mounting structure
has higher machining accuracy,much lighter weight,and part
pre-assembly in factory,(save 30% installation time)
C.Save maintenance cost:with better anti-corrosion,aluminum
mounting structure will have about 25 years duration
lifetime,almost no need maintenance cost.But C-steel mounting will
have to be repainted and re-welded to keep its service life.
D.High priced recycling:scrap aluminum can be sold in high price
after using (about 40% purchase price of aluminum mounting),while
C-steel will be valueless for years severe corroded.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: 5-25 after you confirm all details.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us.
